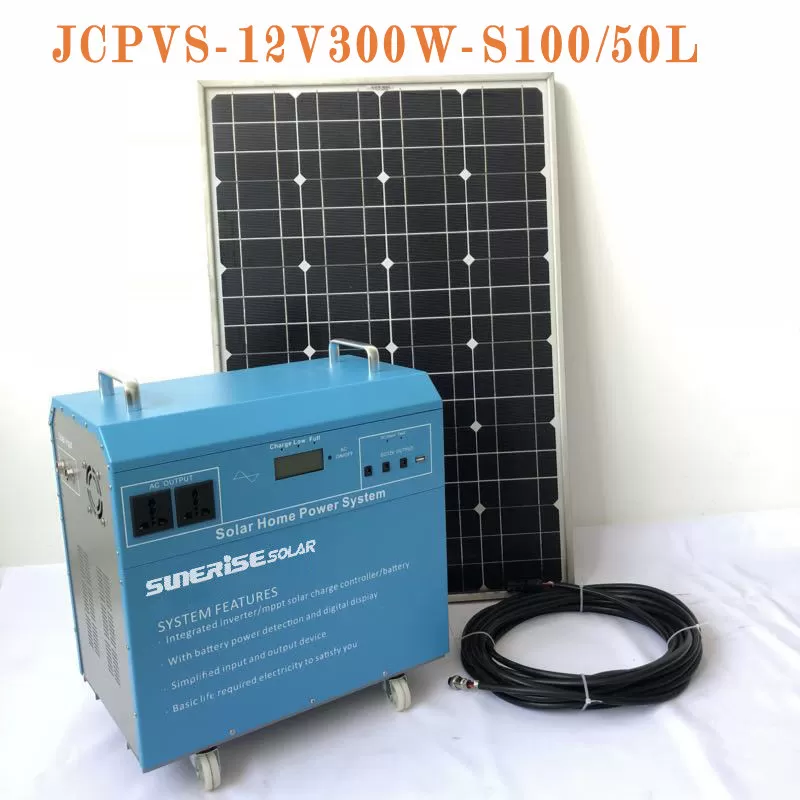

System feature: 1. Integrated battery, charge controller and inverter in one machine 2. MPPT charge control process 3. Power DC loads 4. LCD display with operation status 5. USB plug 5V 6. AC plug Structure: This Mobile Power includes the following parts: 1. Metallic handle, easy to move 2. Display with battery capacity and charging status 3. Real-time status display of DC output 4. False indicator as red light 5. Master switch. Cut off battery supply 6. SET switch of DC output or not 7. DC socket. It should connect the DC load. 8. USB-5V load. 9. Aviation socket to connect the solar panels. 10. Universal AC socket Model JCPVS-12V1KW-S100/50L PV input Solar panel Mono Crystalline A class Work voltage 18.2V Open voltage 22.4V power 100W Cable 10M(MC4) Size(mm) 1200*550*30 Weight 8.1KG MPPT Solar charge Controller MPPT controller Charging current(MAX) 20A Over-discharge protection 10.8V Over-discharge resume 12.6V Over-voltage protection 16.0V Over-voltage resume 15.0V Balance charge protection 14.6V Floating charge protection 14.6V Battery(integrated) FeLiPO4 battery 12.8V 50AH Output DC load 12V output 10A USB-5V 3A voltage 10.8V~15V 5W LED 3PCS(Line length5M) AC OUTPUT voltage 220V/230V/240V 50HZ Power 1000W Over load protection 1100W Short-circuit protection 2000VA Output wave form Pure sine wave General parameters Weight 48KG Shell Protection grade IP21 Size(mm) 400*248*410 Environment temperature -25℃~55℃ Humidity ≤85% LED indicator LED Display Status Green LED(charge) on charging process now Yellow LED(full) on Charging completed Red LED(low) on Battery under voltage
