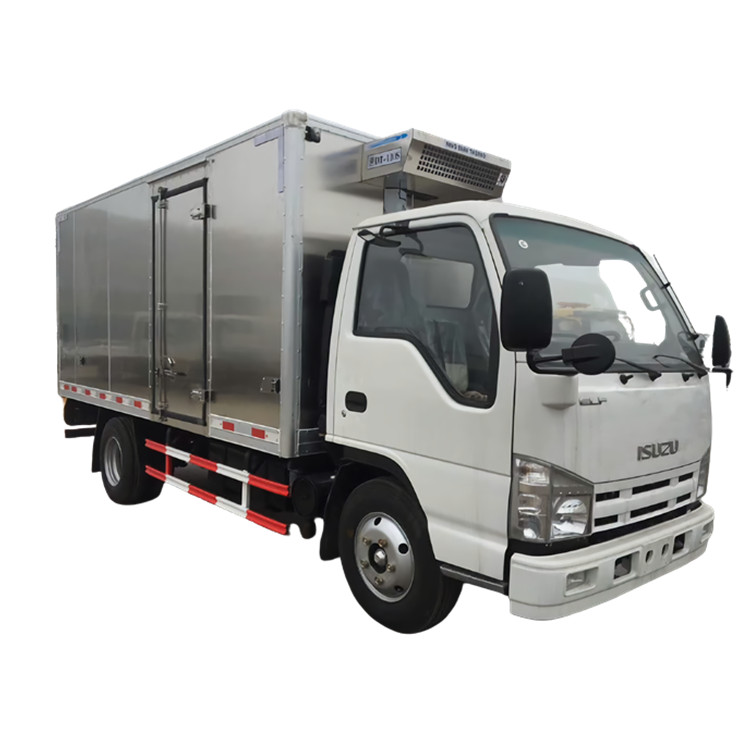

ISUZU 600P 4x2 5tons refrigerator trucks
Contact information
Ms xi chen
Email: chinatrucks @ foxmail.com
Whatsapp: 0086-18727992799
Products Technical Specification
Brand & Series 4x2 Refrigerator truck
Fuel type Diesel
Emission Standard Euro 3
Cabin Single row
Overall dimensions (L×W×H) 6000×2080×2790 mm
G.V.W 8495kg
Curb weight (chassis) 2850kg
Loading capacity 5000kg
Engine & Chassis
Engine model 4JB1CN
Maximum power 72kw/ 100 hp
Displacement 3856
Number of cylinders 4
Engine Manufacturer ISUZU Diesel Engine Co., Ltd.
Gear box 5 forward gears & 1 reverse
Drive Axle 3T
Brake system Air braking
Steering wheel Left hand drive
Electric device 24V
Tyres & Quantity 7.00-15 10PR
Cooling box Description
Cooling box dimensions (L×W×H) 4100*1740*1740mm
Cooling box Volume 12.5m³
Cooling box material with vacuum pressed panel, Internal finish white gel coat FRP.
Heavy duty carborundum grit, non slip polyester resin floor, reinforced with min 1000 grm combination glass fiber matting coved to the walls to provide a watertight pan.
Cooling box thickness 800 mm
Back Door Hinged door
Side door Optional
Refrigeration systems Equipped with China Huatai Brand
Temperature Range Normal temperature 25°C
,refrigeration temperature reached -18°C to 0°C
Others Stainless Steel door frame,Stainless steel corrugated
floor, Mark lamp at the four (4) corners f the
body,Room lamp will be provided inside the cabin.
Box Description
1. Shape:Rectangle
2. Material:FRP and color steel and Polyurethane foam insulation
3. Thickness:8cm
4. Left hand drive
