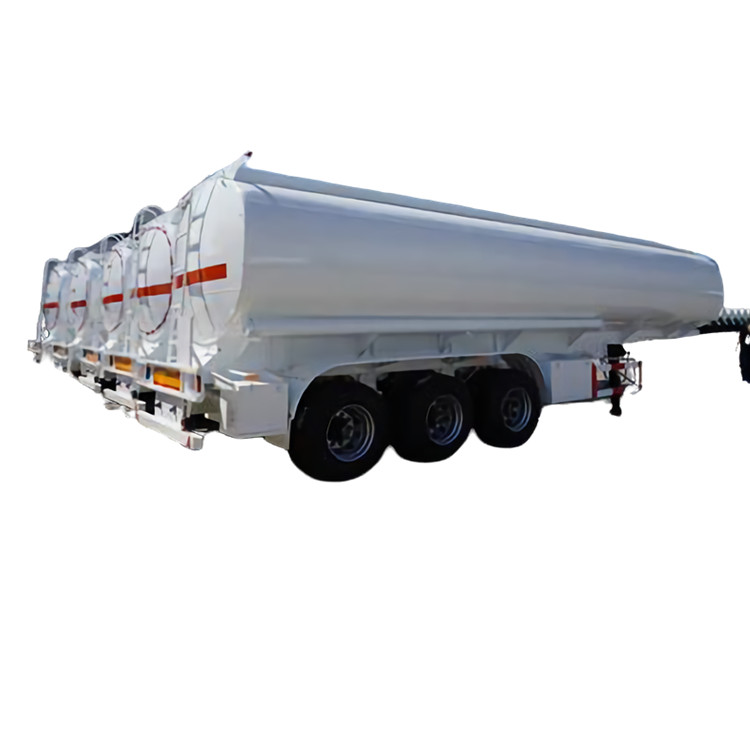

45000Liters petrolem diesel gasoline oil transportation semitrailer
Contact information
Ms xi chen
Email: chinatrucks @ foxmail.com
Whatsapp: 0086-18727992799
Name Unit Parameters
Tanker trailer brand CLW
Tanker model CLW9400
Tanker volume L 45,000
Compartments pcs 4 independent compartments, each one has bottom valves , but without bottom loading equipment
Tanker material carbon steel Q235
Tanker thickness mm 5
Tanker head thickness mm 6
Breakwater thickness mm 5
Tanker vehicle size 12,500×2,500×3,750
Tanker DD 2,500
Manhole diameters mm 500,euro type
Manhole height Mm 250
Out-put ‘’ 3’’
In-put ‘’ 3’’
King pin # 50 or 90 ,according your tractor
Axles NO Pcs 3
Axles brand / ‘FUWA’ famous brand
Axles loading kg 13000kg per unit
Legs NO Pcs 2
Legs loading kg 28000
Anti-static tape Pcs 1
Frame material Carbon steel wuhan steel
King ping Of 2’’ bolt 50#
Axles and suspension 3 axles brand FUWA 13 ton: leaf spring suspension with three axles
Brakes Yes
Tires Set of 13 tires 11.00R20 radial tire
Corridor or walkway Non-slip walkway along the tank top
Tyre carrier Pcs 2
Lateral protection 2 sets strong steel installed on either side of the tank
Extinguisher holder Two fire extinguishers installed as following: one at the driver’s side next to the skate, and another next to the passenger side on the back side of the drawer valve
Bumper China standard
Electric EQ Light 6sets
Dust guard 2 dust guard of rubber(include our brand)
Painting Primer + topcoat (you can choose color as you want)
Rear hook with
